What wattage should a soldering iron for electronics?
The wattage rating should be between 20 and 50 watts.
A higher-wattage soldering iron can maintain a stable temperature longer while you're soldering a connection and can reheat itself faster in between.
40 watts is enough for most small electronic circuits on a standard PC board. You will need more power if you want to solder large (> 18 gauge) wires onto larger connectors (the connectors will conduct away the heat of the iron).
For most guitar repairs, a 30-40 watt soldering iron will suffice. However, if you're working on something larger or are using a thicker solder, you may need a higher wattage soldering iron. A soldering iron concentrates heat at the tip and connects two metal pieces or metal wires to “solder” them.

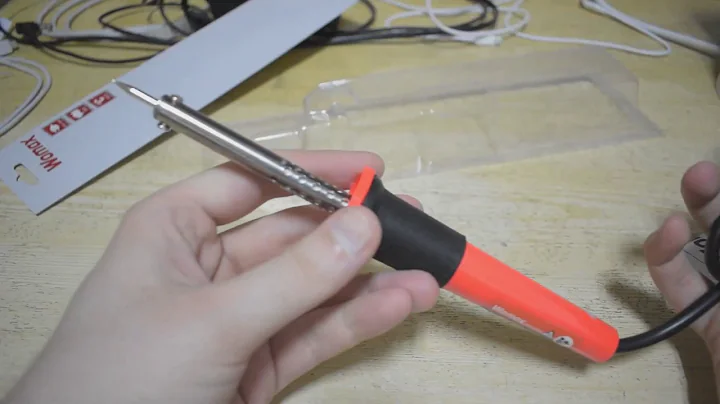

Simply put, a 40-watt soldering iron has more power. Therefore, compared to a 30-watt soldering iron, a 40-watt soldering iron is a little bit quicker and more effective. The TS100 is the best option for small electronics because it heats up so quickly and is comfortable to hold.
Perfect for general repairs, this 40-watt soldering iron produces temperatures up to 600-640ºF.
For electrical and electronics work, a low-power iron, a power rating between 15 and 35 watts, is used. Higher ratings are available, but do not run at higher temperature; instead there is more heat available for making soldered connections to things with large thermal capacity, for example, a metal chassis.
A 30 watt 'simple soldering iron' is okay for modest electronics. Soldering ordinary through hole electronic components and thin (e.g. mm) wire, even the thin metal legs on DC power plugs and sockets, should be fine.
When choosing a soldering iron, you should always look at the wattage rating. Most soldering irons fall in the 20–60 watts range. The lower the wattage the longer your iron will take to heat up.
Member. A 60W soldering iron might be a tad too much if it is not temperature regulated. For basic PCB soldering, something around 25W is more appropriate. Higher powered irons are often seen used in electronics, but most of the time these are temperature regulated.
Is 60W soldering iron hot enough?
An unregulated 60 watt iron is good for for very high speed work, especially on large connections. Even a 45 watt iron can be too hot for PC board work, but with a little care it makes clean connections quickly.
Higher wattage soldering iron have more power, thus making them better suited for heavy-duty projects than their low-wattage counterparts. Higher wattage doesn't mean that the iron provides more heat; rather, high-wattage soldering irons have more power on reserve, enabling them to heat for longer periods.
When joining two metals in a soldering process, like used in PCB assembly, flux is required to achieve a true metallurgic bond. That ensures the solder joint doesn't crack or come loose even with the day-to-day wear-and-tear.
There are three different categories of fluxes used for soldering electronics according to IPC J-STD-004B. These categories are; Rosin and Rosin Substitutes, Water Soluble, and No-Clean.
The higher the wattage of a light bulb, the more heat it will produce. A 60-watt bulb can get up to 200 degrees Fahrenheit on the bulb's glass surface. A 40-watt bulb can reach temperatures over 100 degrees Fahrenheit.
| 40 Watt | 110 degrees Fahrenheit | 80 degrees Fahrenheit |
|---|---|---|
| 60 Watt | 120 degrees Fahrenheit | 89 degrees Fahrenheit |
| 75 Watt | N/R | 95 degrees Fahrenheit |
| 100 Watt | N/R | 106 degrees Fahrenheit |
| 150 Watt | N/R | 120 degrees Fahrenheit |
25W is appropriate for most PCB soldering. Any higher and you'll melt the traces off the circuit board if you hold the iron on longer than a second. <BR><BR>For really small-scale stuff (like SMT) you'd probably want a 15W iron.
Choosing the Right Solder
The best solder to use for tinning stranded copper wire is electrical-grade rosin-core solder. This is an acid-free solder that contains a flux in the core of the solder. Never use solder that contains acid to strip and tin wires, as this can damage the wire or its insulation.
The main types of solder are lead and lead-free. You can use both for electronics, but it can be easier to work with lead-based solder. Make sure to stay away from acid core solder as this is intended for plumbing, NOT electronics.
60/40 is a general purpose soft solder used in applications involving soldering of copper and copper alloys and/or ferrous base alloys. This alloy should not be used in soldering of potable water systems due to its high lead content.
Can you use 50/50 solder electronics?
Solders such as this can be used to join copper and most copper alloys, lead, nickel alloys and steel. This general purpose solder has a wide melting range used for automotive, radiator, gutter repair and electrical applications.
This iron is an adjustable 50W iron with a temperature range from 200-500°C, For most lead free soldering, try 400°C. For lead-based solder, 350°C will do.
The secret of good soldering is to use the right amount of heat. Many people who have not soldered before use too little heat, dabbing at the joint to be soldered and making little solder blobs that cause unintended short circuits. Solders have different melting points, depending on the ratio of tin to lead.
While you need to make sure your soldering iron is hot enough to melt the solder, you want to avoid overheating your solder at all costs. This can cause severe damage to your PCB, the other components and even your soldering iron tip.
Make sure the surfaces to be soldered are clean. Turn on the soldering iron and set temperature above the melting point of your solder. 600°- 650°F (316°- 343°C) is a good place to start for lead-based solder and 650°- 700°F (343°- 371°C) for lead-free solder.
If you have a high effect soldering iron, and a large soldering tip that transfers heat in an efficient way – you don't need that high temperature. Maybe 250 degrees Celsius is enough. But if you are using a low effect iron with a small, tiny soldering tip that transfers heat badly – you need a higher temperature.
Yes, flux should be cleaned off of a printed circuit board (PCB) after soldering is completed. The following are the reasons to remove flux residues: Improve Aesthetic Appearance of PCB - If you are a contract manufacturer of PCB's, the visual appearance of the board reflects on your work.
This issue is usually caused by the soldering iron being set to an improper temperature, or the iron itself has a wattage that is too low for the solder size you are using. If you notice your solder isn't sticking, check your solder material and compare it to the wattage of your soldering iron.
Can You Use Vaseline as Flux? Yes, Vaseline works just as well as commercial flux, and you can even buy a generic brand. Petroleum jelly is primarily made from waxes and mineral oils so that it won't corrode your components. Plus, it cleans away the gunk and eliminates metal oxides that could compromise your bond.
Can flux damage electronics?
Flux is an acidic mixture that is used to remove metal oxide and create good metallurgical bonds during the soldering process. The downside is that the flux residue left after soldering can lead to electronics failures and current leakage.
Member. An unregulated 60 watt iron is good for for very high speed work, especially on large connections. Even a 45 watt iron can be too hot for PC board work, but with a little care it makes clean connections quickly.
Commonly there are three types of fluxes for electronics applications: rosin, water-soluble, and no-clean fluxes. These fluxes are selected depending on the need and applications. Fluxes can be made from ammonium chloride, hydrochloric acid, zinc chloride, or rosin.
An unregulated 60 watt iron is good for for very high speed work, especially on large connections. Even a 45 watt iron can be too hot for PC board work, but with a little care it makes clean connections quickly.
In summary, there are three main types of solder: lead-based, lead-free, and flux. Lead-based solders are the best understood, are reliable, and preferred in mission critical applications such as aerospace or medical electronics.
